Plans for Pithy Bikes Jig V2.3
$10.00
These plans are included with the Jig V2.3 Kit (Don't purchase these plans if you are ordering the kit!)

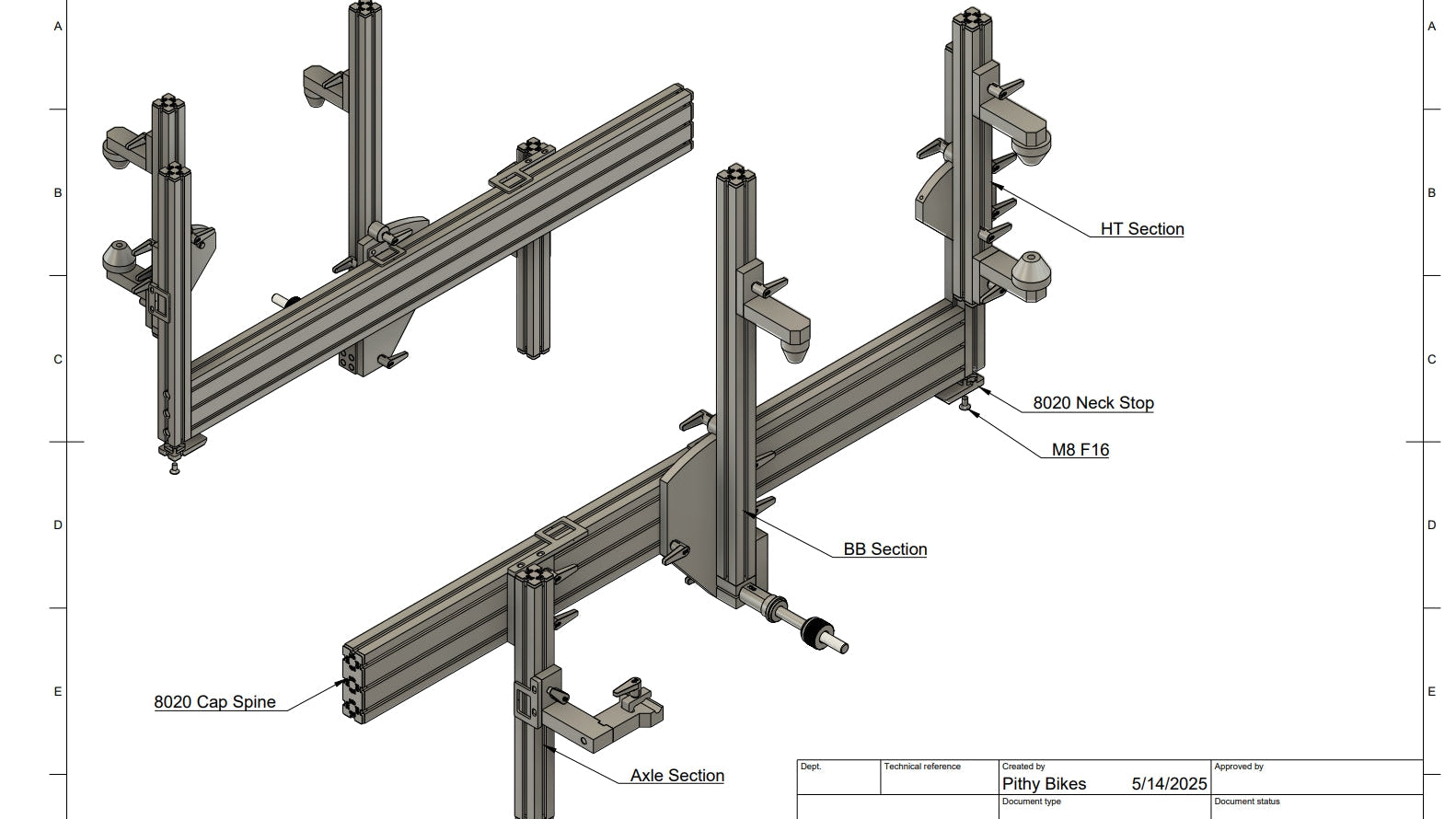

Designed on the same 80/20 platform, Jig V2.3 improves on minimizing material use while maintaining rigidity. Angular and distance scales were added, along with 3D Printed parts.

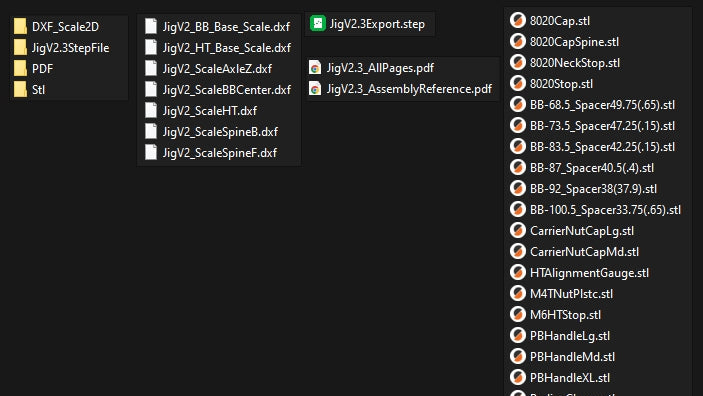

You get:

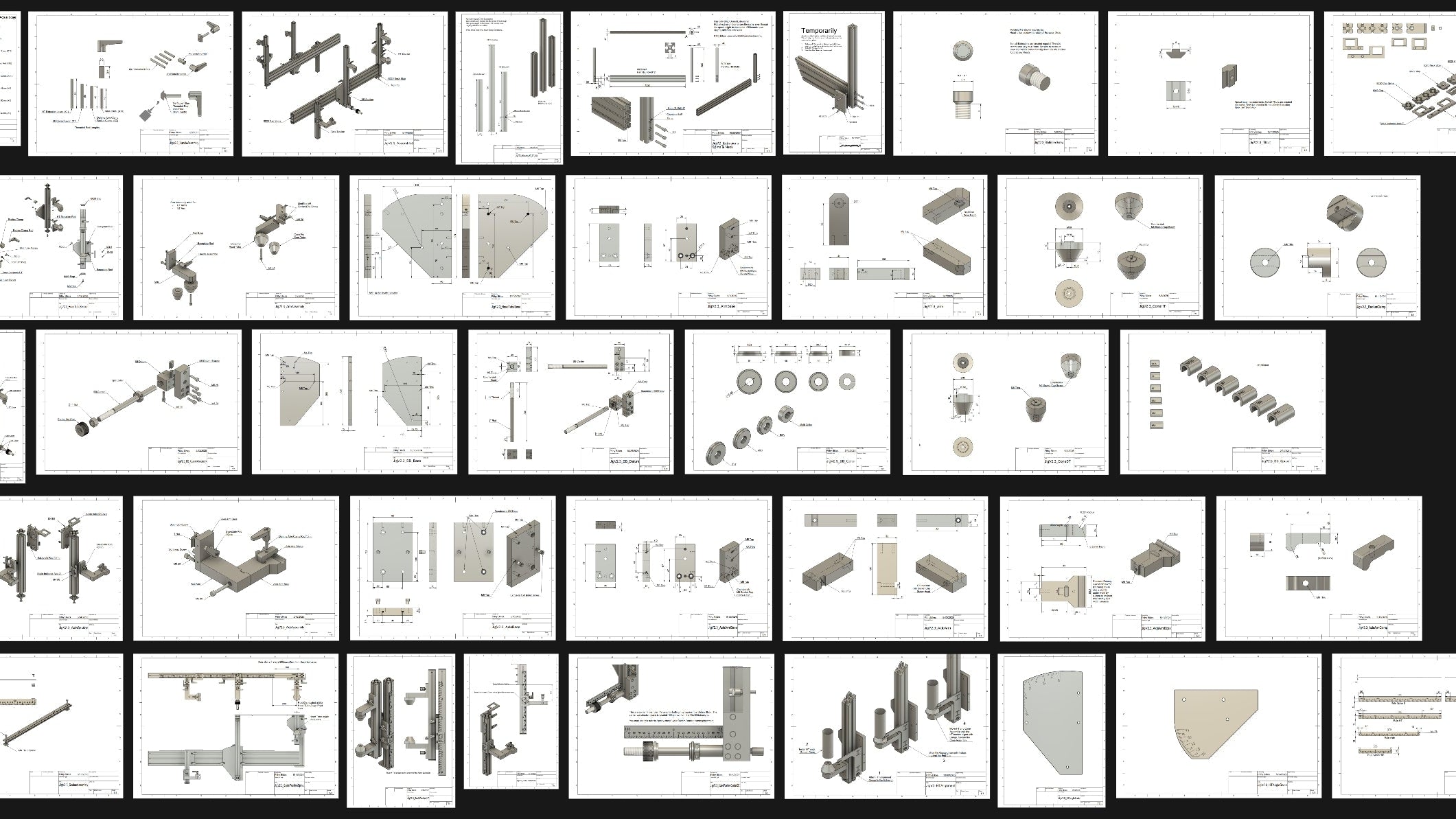

- PDF plans for the Jig
- Step file for the machined parts (can be imported into CAD)
- DXF files for 2D scale read outs
- STL files for all the 3D Printed Parts
